Cadillac 500 8.2 Engine Rebuild.

The Cadillac Eldorado 500 8.2 V8 was introduced in 1970, it was the largest production V8 at the time.

I snapped a few pics of this black beauty when it rolled into the shop. That hood is really long!

This time it’s a rebuild with installation. We don’t do too many because we’re busy rebuilding all the time. I like it when the classics come in. They have meat on the bone.

Complete Rebuild includes: Bore and Hone engine block, Grind & Polish Crank and Cam, and Valve Job on the heads.
Engine Rebuild Kit with New pistons, rings, gaskets, engine bearings, freeze plugs, oil pump and timing set.
Clean, paint, and assemble.

After we plucked it out, it went to the dismantle station for teardown and inspection. It’s a beast of an engine. Next stop, the Hot Tank!!

Oil pan view of cadillac eldorado 500 8.2 engine

Once we scrub it up, we can get to work rebuilding it. We’ve already ordered the new parts and we are ready to rock and roll.

Cadillac Eldorado 500 8.2 cylinder head waiting for valve job

Cylinder heads disassembled, prepped and ready for a valve job. We keep organized, so parts get sorted and labeled.

Cadillac Block and Head work

Hone 1970 Cadillac Eldorado engine block

Engine block bored and honed, we decked the block and slapped on a little paint. The cylinder heads resurfaced, new guides installed, valves were ground, 3 angle seats, and we replaced any broken parts.

1970 Cadillac Eldorado 8.2 short block rebuild

1970 Cadillac Eldorado rebuilding a short block

1970 Cadillac Eldordado 500 8.2 V8 pistons

These shots are the short block assembly being rebuilt. Crankshaft was ground, we put in new pistons, rings, and engine bearings. Getting ready to hang the pistons on the rods. To finish it up, new oil pump, water pump, and timing kit. Engine parts available for your next rebuild project, contact us.

1970 Cadillac Eldorado 500 8.2 rebuilt engine

1970 Cadillac Eldorado 500 8.2 water pump

Long block Eldorado 500 8.2 V8 assembled and ready to drop in.

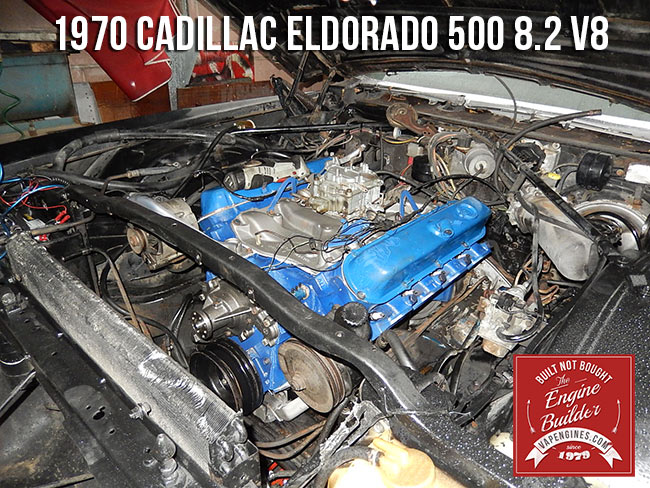

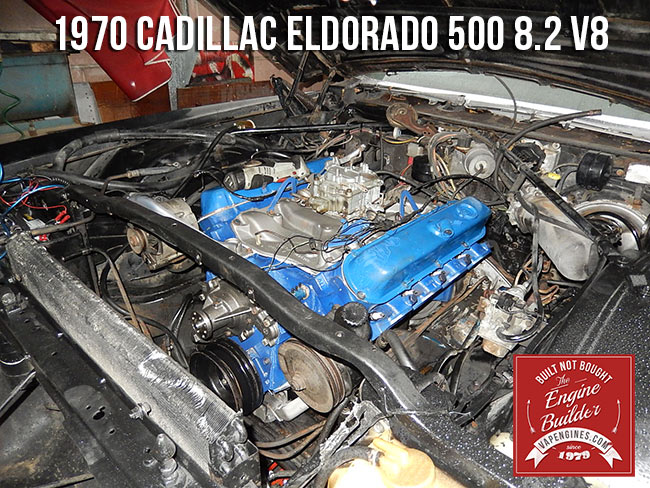

Cadillac 500 8.2 engine during installation.

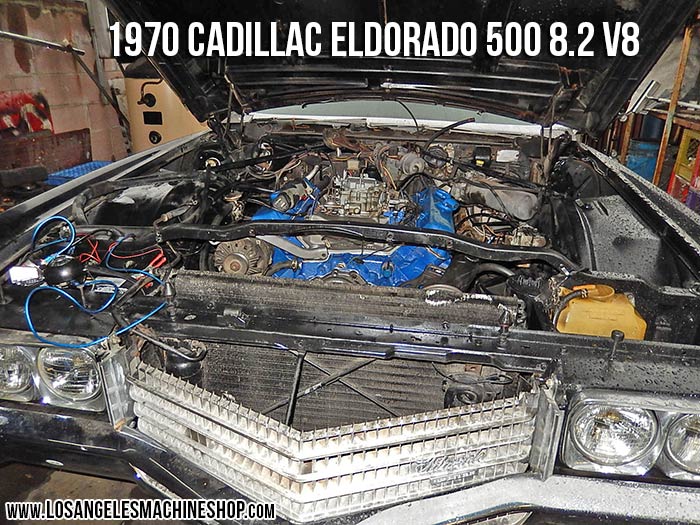

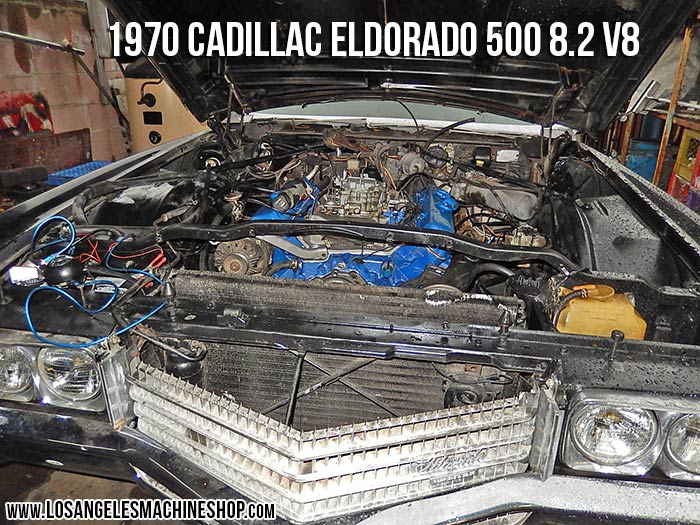

installed cadillac eldorado 500 8.2 engine

Do you need your Cadillac Eldorado rebuilt? Call us 818 767-6603

Need parts so you can do your own 8.2L rebuild? We’ve got you covered.

Available Parts:

Full gasket set
Pistons
Piston Rings
Rod Bearings
Main Bearings
Cam Bearings
Lifters
Timing Kit
Oil pump
Camshaft
Valves- Intake or Exhaust
Freeze plugs

Machine Services or Engine parts available.

Use the Contact page for an rebuild estimate or parts pricing.
